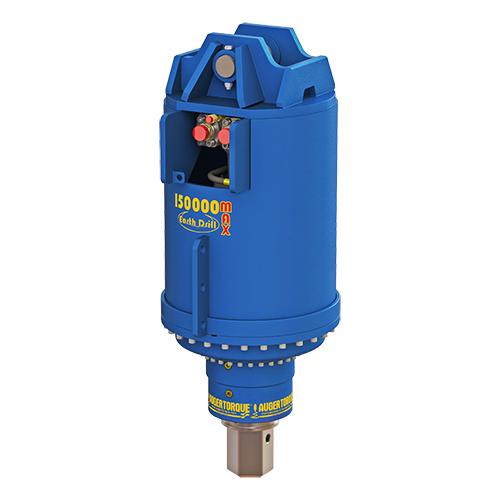

Earth Drill Range: For Excavators 21T to 50T

Earth Drill 100,000 MAX and 150,000 MAX are part of the heavy duty range in the Auger Torque product line up – suitable for excavators between 21T- 50T.

Having surveyed the market & through our frequent and direct collaboration with operators specialising in large screw pile and hard rock drilling applications we are excited to release the Earth Drill 100,000 MAX and 150,000 MAX globally. A perfect choice for excavators between 21-50T, this drive unit is geared towards high torque applications. With a weight of just over 1T (1.5T for 150MAX) we have managed to keep the weight down for versatility whilst not sacrificing any of the robustness our drives are renown for. Running a massive 150mm HEX shaft we are confident it will stand up to the toughest of applications time & time again.

SKU: N/A Categories: ,
Helper Text Need help choosing the correct model. See the specifications section below for more information.

,

Earth Drill Range: For Excavators 21T to 50T

Earth Drill Range: For Excavators 21T to 50T

Earth Drill 100,000 MAX and 150,000 MAX are part of the heavy duty range in the Auger Torque product line up – suitable for excavators between 21T- 50T.

Having surveyed the market & through our frequent and direct collaboration with operators specialising in large screw pile and hard rock drilling applications we are excited to release the Earth Drill 100,000 MAX and 150,000 MAX globally. A perfect choice for excavators between 21-50T, this drive unit is geared towards high torque applications. With a weight of just over 1T (1.5T for 150MAX) we have managed to keep the weight down for versatility whilst not sacrificing any of the robustness our drives are renown for. Running a massive 150mm HEX shaft we are confident it will stand up to the toughest of applications time & time again.

SKU: N/A Categories: ,

You may also like…

  • FEATURES

    Auger Torque’s Earth Drills are built to the most exacting standards using only high quality materials and the latest manufacturing techniques available.

    • 150mm Hex Shaft

      The driveshaft is crucial for reliability and it goes without saying that the bigger the better applies here. A shaft is always stronger when machined as a hex and the 150mm diameter is the largest in the industry, especially when looking at compatibility on machine as small as 21T.

    • Axial Piston Motor

      Axial Piston Motors allow us to run a single speed motor. By using an axial piston motor with our drive we can have a high speed motor but still achieve high torques through the gearbox multiplication. At maximum flow we achieve 15 rpm.

    • Single Piece Non-Dislodgement Shaft

      As standard with all of our auger & screw pile drives, our patented single-piece non-dislodgement shaft is of course a standard feature. We are so confident in this must have safety feature that we are covering it with a lifetime warranty.

    • Epicyclic gearbox

      Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motors output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.

    Features

    • Up to 100,069 Nm of Torque
    • Up to 15 rpm rotational speed
    • Massive 150mm Hex Shaft
    • Large main shaft bearings
    • Non-Dislodgement Shaft
    • Life time non-dislodgement guarantee
    • Low-weight at just over 1T
    • Single-piece driveshaft
    • Compatible with AT Alignment Monitors
    • Covered by Auger Torque’s industry leading warranty

    Applications

    • Large diameter & deep auger drilling
    • Hard Rock Auger drilling
    • Core barrel drilling
    • Pole and mast installations
    • Foundation piles
    • Large diameter screw pile installations
    • Rail applications
    • Exploration & research
    • Compatible with excavators from 21T onwards allowing for low impact and reasonably tight access application where typically larger machines would have to be used.

  • SPECIFICATIONS

  • Warranty

    LIFETIME WARRANTY*

    • *Lifetime Warranty against Shaft Dislodgement
    • Planetary Gearbox Components - 72 months
    • Hydraulic Motors - 36 months
    • All other Products – 24 months
    • All Other Parts / Products - 24 months

    Click here to find out more about Auger Torque’s industry leading lifetime warranty or register your product online.
